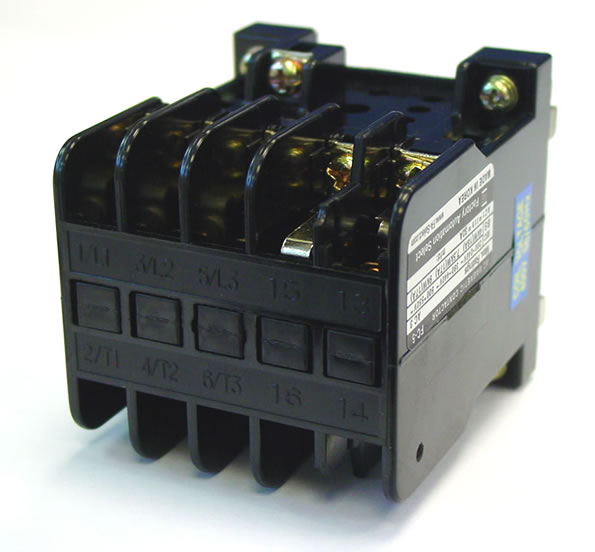

磁力開關 |
| |
|
|
|
|
|
| |
 |
|
型號：FC-5
接點：4a1b (4NO, 1NC)
重量：0.35kg
產地：韓國
特點：附可扣路軌底片 |
|
| |
|
|
|
|
|
| |

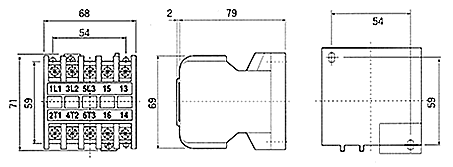

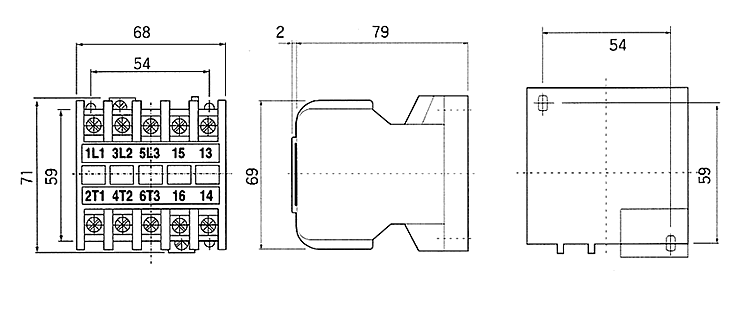

尺寸： |
|
|
|
|
| |
 |
|
| |
|
|
|
|
|
| |

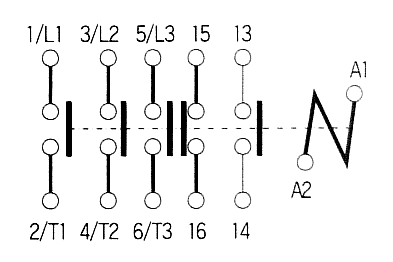

接線圖： |
|
|
|
|
| |
 |
|
|
| |
|
|
|
|
|
| |
產品規格： |
|
|
|
|
|
Motor
Capacity |
3-Phase
Squirrel-Cage
Motor |
AC3 |
200~220V |
4kW
20A |
380~440V |
7.5kW
17A |
500~550V |
9kW
17A |
AC4 |
200~220V |
3.7kW
18A |
380~440V |
5.5kW
13A |
| Single
Phase Motor |
110V |
0.9kW
20A |
220V |
1.8kW
20A |
DC1 |
2P
Series Connect |
110V |
15A |
220V |
12A |
3P
Series Connect |
110V |
20A |
220V |
20A |
In
A(AC1) |
30A |
Endurance(Ten
thousand) |
Endurance |
100 |
Mechanical |
1000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
