 DYR-MY-2C/DYR-MY-2CP |
|
|
ㆍApproved
by UL
 File No. E211599.
ㆍContact configuration : 2C(2a-2b),
ㆍHigh sensibility, long life and high
speed
response.
ㆍLED
Type : Option products. |
| |
|
|
|
| |
|

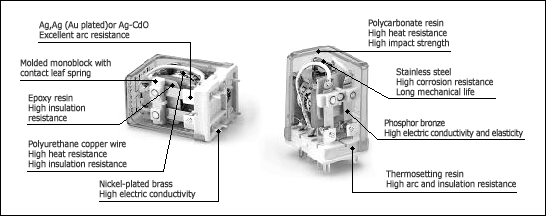

Extremely simple
construction with no intermediate plate.
The entire mechanism is directly secured to a thermosetting
resin molded base.Very few component parts are used and
overall construction is extremely simple. |
Well integrated
All parts and components are neatly integrated in a relay body
with out wiring connection. |
|
|
|
|
| |
|
COIL RATINGS |
|
|
RatedVoltage
|
Rated Current(mA)
±15%at 20 ℃
|
Coil Resistance
±10%at 20 ℃
(Ω)
|
Maximum Voltage
|
Minimum
Operate Voltage
|
Drop-out
Voltage
|
|
50Hz
|
60Hz
|
|
AC
|
6
|
238
|
200
|
9.6
|
110%
|
80%max
of Rated
Voltage
|
30%min
|
|
12
|
118
|
100
|
40.5
|
|
24
|
59.7
|
50
|
156.7
|
|
50
|
28.3
|
24
|
706
|
|
110
|
14.2
|
12
|
3,390
|
|
220
|
7.1
|
6
|
13,920
|
|
230
|
7.2
|
6
|
13,920
|
|
240
|
6.6
|
5.5
|
15,210
|
|
DC
|
6
|
150
|
40
|
15%min
|
|
12
|
75
|
160
|
|
24
|
36.9
|
650
|
|
48
|
18.5
|
2,600
|
|
110
|
9.1
|
12,100
|
|
| |
|
|
SPECIFICATIONS |
|
|
Contact Rating
|
50m Ωmax.initial value
|
|
Operate Time
|
20m Sec max
|
|
Release Time
|
20m Sec max
|
|
Insulation Resistance
|
100 ㏁min at 500VDC
|
|
Power Consumption
|
AC :Approx 1.4VA 50Hz / AC:Approx 1.2VA
60Hz
DC :Approx 0.9W
|
|
Dielectric strength
|
Between live and dead parts :1,500VAC for
1 min
|
|
Between contact and operating coil:1,500VAC
for 1 min
|
|
Between contacts :
1,500VAC for 1 min 700V between NO-NC
|
|
Operating Freguency
|
1,800 operations(hour)
|
|
Temperature Rise
|
Coil :85 ℃max.Contact :65 ℃max
|
|
Vibration
|
0 ∼6G,55Hz max
|
|
Shock
|
Approx.20G 200 ㎨
|
|
Ambient Temperature
|
-5 ℃∼+40 ℃
|
|
Life
|
Mechanically :50,000,000 Operations /
Electrically :20,000,000 Operations
|
|
Weight
|
Approx.32g
|
|
| |
|
|

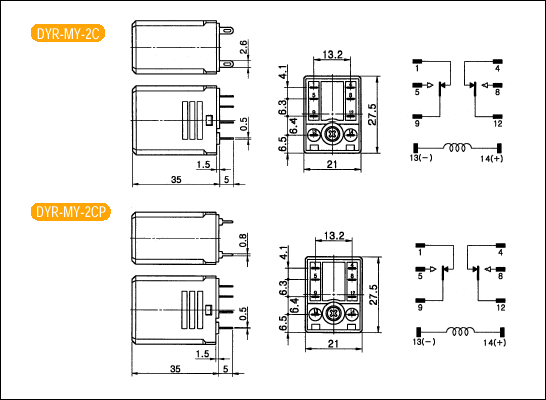

DIMENSIONS &CIRCUIT DIAGRAMS |
|
|
|
| |
|
|
CONTACT RATINGS |
|
|
Load
|
Resistive Load
(COS Ø=1)
|
Inductive Load
(COS Ø=0.3,L/R =7ms)
|
|
Rated Load
|
110VAC,5A
|
110VAC,2A
|
|
220VAC,5A
|
220VAC,2A
|
|
24VAC,5A
|
24VAC,2A
|
|
Carry Current
|
5A
|
|
Max Operating Voltage
|
AC :1,100VA
DC :120W
|
AC :440VA
DC :48W
|
|
Max Operating Current
|
5A
|
|
|
