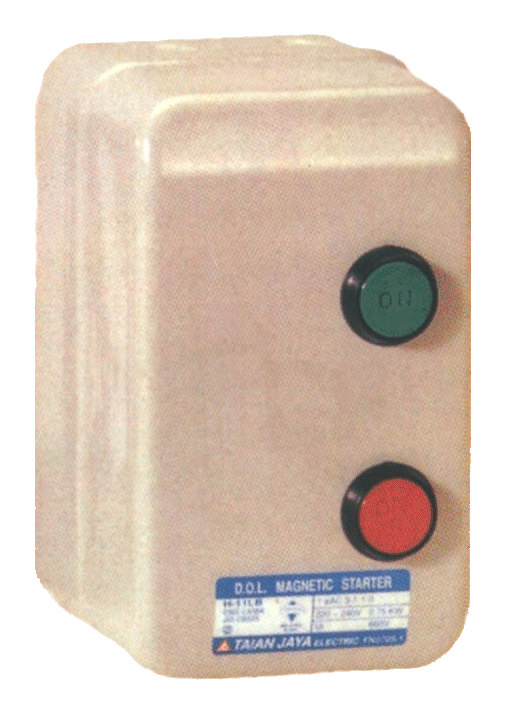

D.O.L. MAGNETIC STARTERS (With
Push-Buttons On Cover) |
CATALOGUE
NUMBER: |
BS4941 PTI: 1979
|
H-11LB |
H-16LB |
H-18LB |
H-25LB |
HFE-11LB |
HFE-16LB |
HFE-18LB |
HFE-25LB |
| RATED
INSULATION VOLTAGE |
660 |
660 |
| RATED
OPERATIONAL VOLTAGE |
600 |
600 |
RATED
OPERATIONAL (AC3)
CURRENT Ie
(A) |
220-240V |
10 |
16 |
24 |
30 |
10 |
15 |
22 |
26 |
| 380-440V |
9 |
12 |
15 |
27 |
9 |
12 |
15 |
21 |
| 500-550V |
7 |
10 |
12 |
22 |
7 |
10 |
12 |
17 |
RATED
CAPACITY
(AC3)
KW(HP) |
SINGLE
PHASE |
110-120V |
0.4 (0.5) |
0.75 (1) |
1.1 (1.5) |
1.5 (2) |
0.4 (0.5) |
0.75 (1) |
1.1 (1.5) |
- |
| 220-240V |
0.75 (1) |
1.5 (2) |
2.2 (3) |
3.7 (5) |
0.75 (1) |
1.5 (2) |
2.2 (3) |
- |
THREE
PHASE |
220-240V |
2.2 (3) |
3.7 (5) |
5.5 (7.5) |
7.5 (10) |
2.2 (3) |
3.7 (5) |
5.5 (7.5) |
7.5 (10) |
| 380-440V |
4 (5.5) |
5.5 (7.5) |
7.5 (10) |
15 (20) |
4 (5.5) |
5.5 (7.5) |
7.5 (10) |
11 (15) |
| 500-550V |
4 (5.5) |
5.5 (7.5) |
7.5 (10) |
15 (20) |
4 (5.5) |
5.5 (7.5) |
7.5 (10) |
11 (15) |
| CONTACTOR
USED |
C-11L |
C-16L1 |
C-18L |
C-25L |
C-11L |
C-16L1 |
C-18L |
C-25L |
| AUX.
CONTACT |
1N/0 |
1N/0+1N/C |
2N/0+2N/C |
1N/0 |
1N/0+1N/C |
| OVERLOAD
RELAY USED |
RH-10EB |
RH-18B |
RH-18B |
| MAKING
& BREAKING CAPACITY |
AC3 |
AC3 |
INTERMITTENT
DUTY
OPERATION HOUR |
1200 |
1200 |
600 |
ELECTRICAL
LIFE
MILLION OPERATIONS |
1 |
1 |
0.25 |
MECHANICAL
LIFE
MILLION OPERATIONS |
5 |
5 |
RATED CURRENT OF
AUX. CONTACTS |
AC-220V |
6 |
5 |
6 |
5 |
| AC-440V |
3 |
3 |
| COMPLYING
WITH |
CNS
C4084, JIS C8325, IEC 292-1 |
CNS
C4084, JIS C8325, IEC 144. IEC 292-1 |
APPROX.
DIMENSIONS (mm)
W x L x H
(A x B) |
 |
87.6 x
148 x 100
(B = 124) |
129 x
216.5 x 135
(86 x 188) |
94 x
166 x 112
(B = 145) |
108 x
171 x127
(B = 150) |
| REMARKS |
STELL
ENCLOSURE |
IP-65,
ABS ENCLOSURE |
