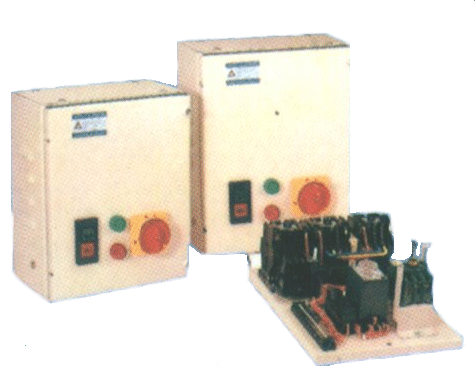

STAR-DELTA MAGNETIC STARTER COMBINATION
TABLE |
| STAR-DELTA MAGNETIC STARTER |
KW |
5.5 |
7.5 |
11 |
15 |
19 |
22 |
30 |
37 |
| HP |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
| THREE PHASE
415V
50Hz |
MOTOR
FULL LOAD CURRENT A |
11.2 |
14.5 |
21 |
27 |
34 |
40 |
52 |
65 |
| MAIN
MAGNETIC CONTACTOR C- |
16L |
16L |
18L |
18L |
25L |
25L |
35L |
35L |
| DELTA
MAGNETIC CONTACTOR C- |
16L |
16L |
18L |
18L |
25L |
25L |
35L |
35L |
| STAR
MAGNETIC CONTACTOR C- |
16L |
16L |
18L |
18L |
18L |
18L |
25L |
25L |
| THERMAL
OVERLOAD RELAY (TOR) RH- |
18 |
18 |
18 |
18 |
18 |
18 |
35 |
35 |
| RATED
OVERLOAD CURRENT A |
7 |
10 |
15 |
20 |
20 |
26 |
30 |
42 |
| MOLDED
CASE CIRCUIT BREAKER MCCB |
30S |
50S |
50S |
50S |
100S |
100S |
100S |
100S |
| MCCB
RATED CURRENT (AMPERE) A |
30 |
40 |
40 |
50 |
60 |
60 |
75 |
100 |
