REVERSING MAGNETIC CONTACTORS
COMPLYING
WITH
CNS-C4084 AS 1029
IEC-158-1
BS-5424
VDE-0660
CATALOGUE NUMBER
CL-4L
CL-10L
CL-16L
CL-20L
CL-25L
CL-35L
CL-50L
CL-65L
CL-80G
CL-100L
CL-125G
CL-150G
CL-200G
GENERAL TECHNICAL DATA
RATED INSULATION VOLTAGE
660
CONTINUOUS CURRENT Ith: (A)
20
20
30
40
50
65
80
100
130
150
170
200
235
AUX. CONTACTS
1N/O + 1N/C
2N/O + 2N/C
ELECTRICAL LIFE
(UNIT: MILLION OPERATIONS)
0.5
1
0.5
1
0.5
MECHNICAL LIFE
(UNIT: MILLION OPERATIONS)
5
APPROX. WEIGHT (KGS)
0.52
0.76
1.8
2.7
7.3
7.6
14.3
RATED OPERATIONAL CURRENT
AC 3(A)
SINGLE PHASE
110V
8.5
10
14
20
24
-
220V
8
12
14
17
28
-
THREE PHASE
220V
10
10
16
24
30
44
58
68
100
110
135
165
200
440V
8
8
12
21
27
40
52
65
90
105
130
160
190
550V
6.5
6.5
10
17
22
32
41
52
72
85
105
130
150
RATED CAPACITY
KW (HP)
AC3
SINGLE PHASE
110~120V
0.4 (0.5)
0.5 (0.75)
0.75 (1)
1.1 (1.5)
1.5 (2)
-
220~240V
0.75 (1)
1.1 (1.5)
1.5 (2)
2.2 (3)
3.7 (5)
-
THREE PHASE
220~240V
2.2 (3)
2.2 (3)
3.7 (5)
5.5 (7.5)
7.5 (10)
11 (15)
15 (20)
19 (25)
25 (35)
30 (40)
37 (50)
45 (60)
55 (75)
380~440V
3.7 (5)
3.7 (5)
5.5 (7.5)
11 (15)
15 (20)
22 (30)
30 (40)
37 (50)
50 (70)
60 (80)
75 (100)
90 (125)
110 (150)
500~550V
3.7 (5)
3.7 (5)
5.5 (7.5)
11 (15)
15 (20)
22 (30)
30 (40)
37 (50)
50 (70)
60 (80)
75 (100)
90 (125)
110 (150)
ACCESSORIES ADDABLE
DIN RAIL ADAPTOR
-
MECHNICAL INTERLOCK SET
-

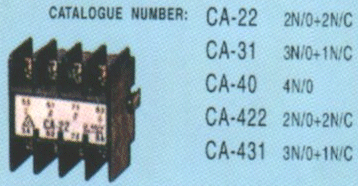

AUX. CONTACT BLOCK
-
CA-422
CA-432
CA-22, CA-31, CA-40
-
SURGE ABSORBER
CS-10
CS-20
-
APPROXIMATE DIMENSIONS (mm)
H: HEIGHT
H:74
H:85
H:115
H:120
H:120
H:142
H:160
ACCESSORIES
ADDABLE
DIN RAIL ADAPTOR
MECHNICAL INTERLOCK SET
AUX. CONTACT BLOCK
